First off to fit the NTE5 ADSL faceplate splitter you need to remove the front lower half of the NTE5 :-
You could discard the front lower plate but keep it just in case! :-
If your modem or router plugs into your master socket and you have no extension wiring all you need to do is plug the ADSL faceplate in! :-

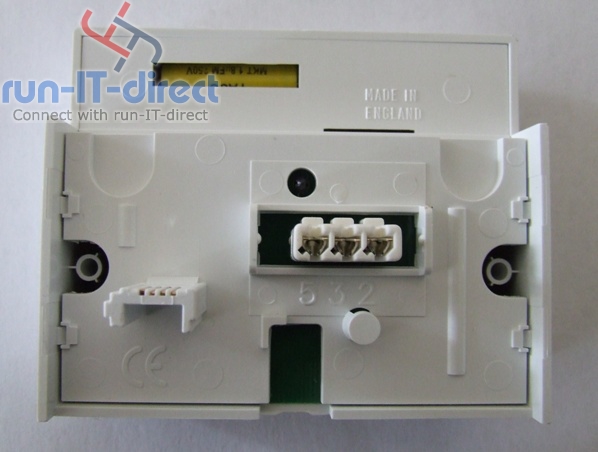

If you have extension wiring for phones only then you have probably purchased the 3 way version (NTE2000) , to connect extension wiring (and do away with filters on all extensions) you need to wire to the back of the ADSL faceplate :-

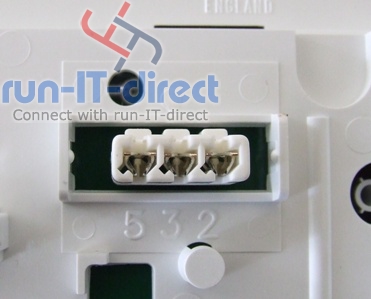

You will see the IDC block is marked 2,3 & 5. Most modern phones will work with just 2 & 5, if your phones do not ring then connect pin 3. Simply connect wires to pins 2, 5 & 3 and connect to the same pins on your extension(s).

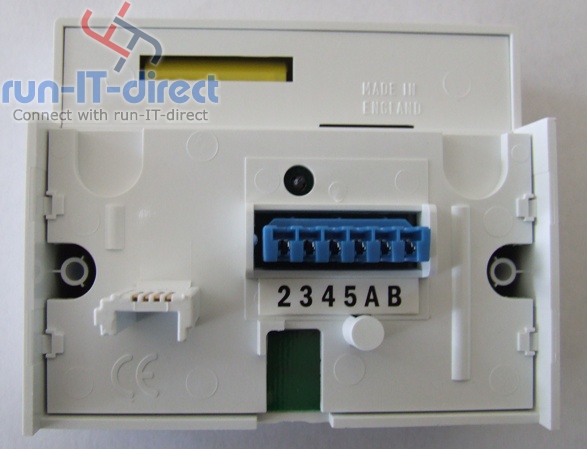

If your modem or router isn't by the master socket then you have probably purchased the 6 way IDC version (NTE2005)

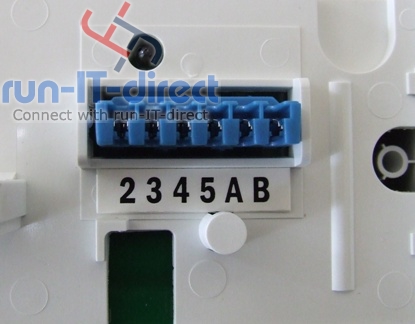

For filtered(telephones, Sky boxes etc) extensions wire to the pins marked 2,3 & 5 as above :-
For the extension that you plan to run to your modem/router you MUST wire to the pins marked A & B. Most people find they want to plug there modem/router in away from the common master socket location (by the front door/ hallway etc) but would still like the neatness that a centralised filter gives.
