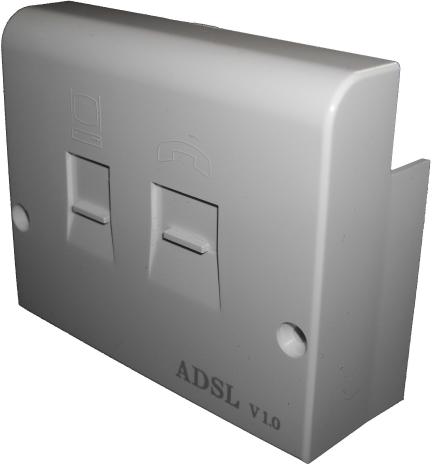

BT Openreach™ NTE-2000 ADSL Faceplate
PRODUCT CODE: BTADSLFP
 |  |
ADSL2+ Version
Download User Guide
Manufacturer Data Sheet
This faceplate provides the same benefits as the NTE5/BT Broadband Accelerator bell wire filter with the ADDITION of ADSL filtering.
The NTE2000 replaces the lower front half of a BT NTE5 type master socket, manufactured by Pressac UK who supply BT.
The NTE2000 is the type of ADSL faceplate that BT supply, it fits on to a BT NTE5 master socket (also available-see below), supplied with user instructions, cable tie & screws. It allows the router or modem to be plugged directly into the master socket which often results in a better connection as it is no longer reliant on plug in filters or unreliable poor quality extension wiring.The faceplate provides an ADSL modem/router outlet and a standard BT filtered telephone outlet. IDC connectors on the rear allow the provision of FILTERED extensions, ie, you only need this faceplate and not a microfilter at each extension. IDC tool required ONLY if fitting extension wiring. Please note we also supply the version with 6 way IDC block for connecting a modem/router via extension wiring-see HERE. Latest ADSL 2+ Specific Faceplate (SSFP)" which is a direct replacement for the ADSL V1.0 version.
Key Features
- Line: BS6312 approved integrated 431A plug.
- Telephone : Connection via BS6312 4 way BT socket.
- Modem : Direct coupled RJ45 (RJ11 compatible) socket.
- Approved by BT Openreach.
- Extension wiring : 3 way IDC connector.
- Filters all connected voice equipment so negating the need for microfilters.
- Moulded from V0 rated material colour matched to BT 1P white.
- Tested by BT to SIN 346 Issue 2.2
- Compatible with Calling Line Identification working.
- CE Marked - BS EN 55022.
This page is for information & reference only as the product is no longer manufactured. Alternative or later versions of the product can be found below.
£11.02(£13.22 inc VAT)
DISCONTINUED
Replaced by VTE-2015
VTE 2015B VDSL/ADSL NTE5A Faceplate
PRODUCT CODE: VTE2015B
 |
 |
This faceplate provides the same benefits as the NTE5/BT Broadband Accelerator bell wire filter with the ADDITION of vDSL/ADSL filtering.
Latest VDSL faceplate for NTE5A type master sockets (replaces earlier XTE-2005 version & VTE-2015). Unlike the BT version the VTE-2015B replaces the lower front half of the NTE5 socket, useful if you are replacing an old type ADSL faceplate & no longer have the original NTE5 lower front plate. Centralised vDSL filtering is then provided negating the need for plug in microfilters with an RJ45/RJ11 socket providing the connection for a modem/router. Alternatively, provision is made for a hard wired connection to the modem and filtered telephone extensions via the IDC connector block on the rear. This faceplate is backwards compatible with all ADSL services & features differential and common mode filtering performances to 30Mhz.
Key Features
- Line: BS6312 approved integrated 431A plug.
- CCU: BS6312 approved 4 way 401A socket (filtered).
- VDSL Modem: Direct coupled RJ45 socket (RJ11 compatible) Direct coupled IDC connector.
- Filters all connected voice equipment so negating the need for microfilters.
- Moulded from V0 rated material colour matched to BT 1P white.
- Supplied with self tapping & machine type mounting screws (compatible with ALL NTE5 socket variants).
- Differential and common mode filtering performances specified to 30Mhz.
- ADSL filter performance compliant with SIN346
- VDSL2 filter performance compliant with SIN498
Note, NOT compatible with NTE5C master sockets! Use MK4 VDSL or G.fast for NTE5C.
£18.95(£22.74 inc VAT)
In Stock
